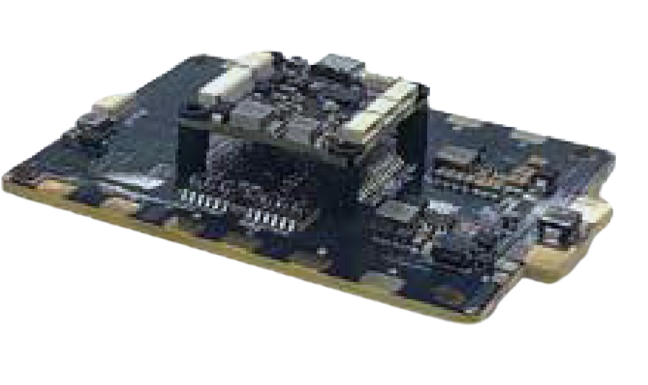

F722 Flight Controller
$85.00
Buy the F722 Flight Controller for custom FPV drone builds, repairs, upgrades, and compatible FPV configurations. Compare mounting pattern, firmware support, voltage input, ESC current rating, receiver support, solderless connectors, wiring layout, and price before checkout.
Main control chip : STM32F722RET6
Gyroscope : ICM42688P
USB : Type-C
Add to cart
Buy Now
-
Size Guide
Size Guide
SIZE CHEST WAIST HIPS XS 34 28 34 S 36 30 36 M 38 32 38 L 40 34 40 XL 42 36 42 2XL 44 38 44 -
Delivery Return
User Guide
Please read the manual before use.
1. Safety Warning
- The information in this document won't be modified or extended in accordance with any notice.
- The watch should be charging 2 hours at least before use. Security Code
- The original code is 1122,this code can prevent your watch in use by others without your permission.
- Please change the original code to insure your personal information safe.
2. Product details
- Power button: Power On/Off；Awaken/turn off screen；Back to main menu
- Touch screen: each function (main menu) will be shown and displayed on capacitive touch screen
3. Clock Display
- Method 1: Power on, when the phone in clock mode, please click middle screen and set different clock interfaces if you like.
- Method 2:Power on, Main menu: setting--phone setting--standby menu display -- unlock selection.
4. Product quick use
- Download the Sync software
- Install and use the Sync software
-
Ask a Question
Ask a Question
F722 Flight Controller
$85.00
Free
Worldwide
Shopping
100%
Guaranteed
Satisfaction
30 Days
Guaranteed
Money Back
F722 Flight Controller Overview
The F722 Flight Controller serves buyers who need higher-performance FPV control electronics for drone builds, rebuilds, upgrades, and replacement setups. It features an STM32F722RET6 main control chip, ICM42688P gyroscope, Type-C USB, onboard OSD, 16MB Black Box, broad receiver protocol support, and a matching 120A 4-in-1 ESC for demanding FPV configurations.
Key Specifications
| Product Type | FPV Flight Controller & ESC Stack |
|---|---|
| Model | F722 Flight Controller |
| Main Control Chip | STM32F722RET6 |
| Gyroscope | ICM42688P |
| USB | Type-C |
| Barometer | SPL06-001 |
| OSD Chip | AT7456E |
| Firmware Support | Betaflight / INAV / ArduPilot |
| Firmware Name | ARCOSKYFPVF722X8 |
| Mounting Pattern | 30.5 × 30.5mm / M4 |
| Flight Controller Size | 36 × 36mm |
| Flight Controller Weight | 8g |
| Black Box | 16MB |
| Beeper | Support |
| LED | Support × 4 |
| Receiver Protocol | ELRS / CRSF / SBUS / FRSKY / FUTABA / FLYSKY / TBS Crossfire / DSMX |
| Solderless Connectors | Receiver 4P, Camera 3P, Analog VTX 4P, Digital VTX 3P, ESC 8P, GPS 6P |
| ESC MCU | EFM8BB21F16G-C-QFN20R |
| ESC Rating | 120A |
| Continuous Current | 120A × 4 |
| Instantaneous Current | 125A × 4–10S |
| ESC Firmware | BLHeli_S / Bluejay |
| MOS | ON5C410NL |
| Battery Input | 3–8S LiPo |
| Protocol | DShot300 / DShot600 / PWM / Bi-directional DShot |
| TVS Protection Diode | Yes |
| Capacitor | 50V / 4700uF Low ESR Capacitor |
| Amperemeter | Support |
| Power Output | VBAT |
| ESC Mounting Holes | 30.5 × 30.5mm / M4 |
| Best Fit | Compatible FPV frames, high-current drone builds, rebuilds, and FC/ESC upgrades |
What Buyers Should Check Before Ordering
Before ordering the F722 Flight Controller, confirm that the 30.5 × 30.5mm M4 mounting pattern, 36 × 36mm board size, 3–8S LiPo battery support, receiver protocol, ESC current rating, firmware support, and wiring layout match your FPV frame and motor setup. Buyers should also check stack clearance, VTX wiring, GPS connection needs, camera support, solderless connector access, and cooling for high-current builds.
Compatible Products
Pair the F722 Flight Controller with compatible FPV frames, brushless motors, analog VTX units, digital VTX units, receivers, FPV cameras, GPS modules, propellers, LiPo batteries, and drone build hardware.
F722 Flight Controller Shopping Questions
Is the F722 Flight Controller built for FPV drones?
Yes. The F722 Flight Controller is built for compatible FPV drone builds, repairs, upgrades, rebuilds, and replacement control electronics.
What firmware does the F722 Flight Controller support?
The F722 Flight Controller supports Betaflight, INAV, and ArduPilot. The listed firmware name is ARCOSKYFPVF722X8.
What ESC current rating does this stack include?
This stack includes a 120A ESC with a listed continuous current rating of 120A × 4.
What mounting pattern does the F722 Flight Controller use?
The flight controller and ESC use a 30.5 × 30.5mm / M4 mounting pattern.
What parts should buyers pair with this product?
Buyers should pair this product with compatible FPV frames, brushless motors, VTX units, receivers, cameras, propellers, LiPo batteries, and build hardware.
